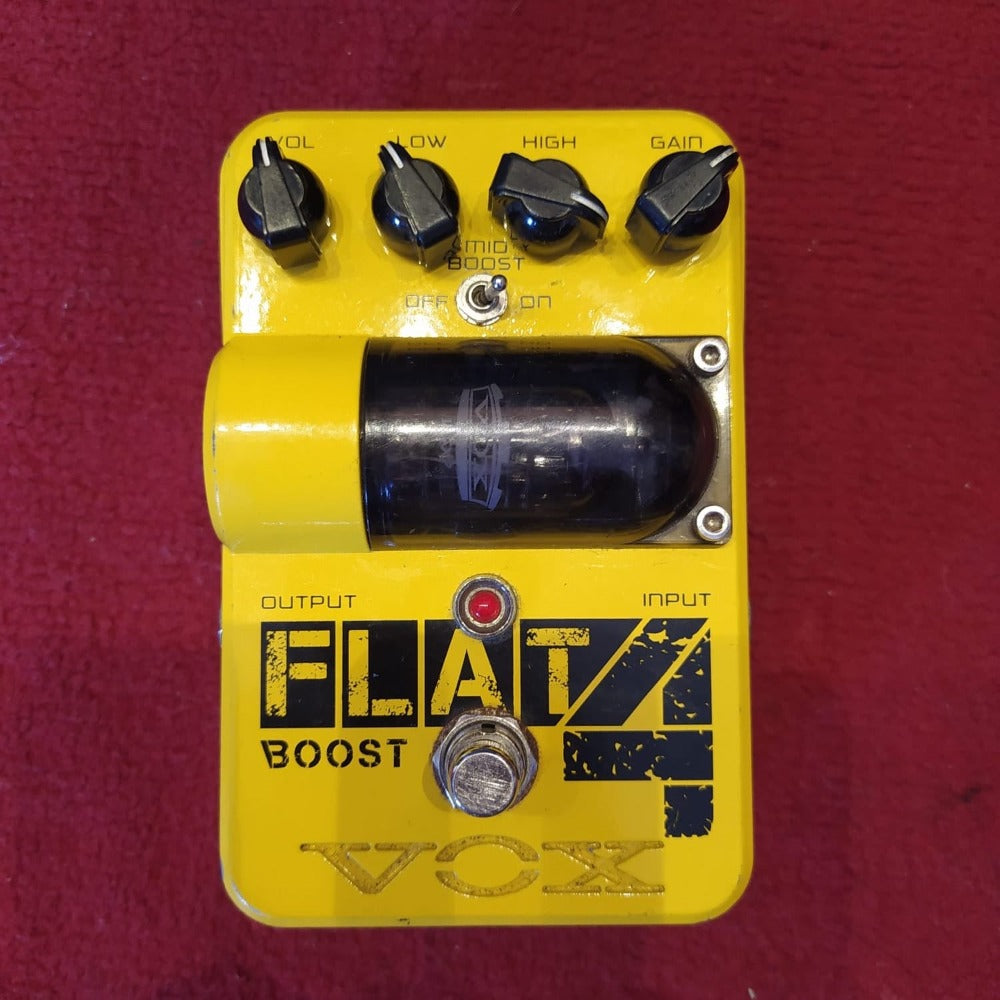

VOX Flat 4 Boost

The VOX FLAT 4 Booster is designed to give your guitar tone the boost and edge that you need. Its three modes allow you to use it as a full-range booster, a mid-boost, or a triple-boost. The Baxandall tone circuit allows adjustment from flat to boost, and the independent mid-boost switch lets you switch the response of the mid-range for playing lead. This is an ideal unit for blues guitarists who wish to highlight their picking nuances.

VOX FL4BT FLAT 4 BOOST SPECIFICATIONS

• INPUT IMPEDANCE: 1M Ω
• OUTPUT IMPEDANCE: 2.2k Ω
• VACUUM TUBE: ECC83 / 12AX7
• CONNECTIONS: INPUT jack (guitar input), OUTPUT jack (line output)
• POWER: AA battery x 6
• AC ADAPTER: DC 9V (Option)
• VACUUM TUBE OPERATING VOLTAGE: 200 V
• CONSUMPTION CURRENT: 240 mA
• BATTERY LIFE: Approximately 7 hours
• DIMENSIONS: (W X D X H): 87 x 132 x 63 / mm, 3.43 x 5.20 x 2.48 / inch
• WEIGHT: 420 g / 14.81 oz (not including battery)
